Iso-Kit
Integrated insulated cargo area

Volkswagen Crafter 2017

Volkswagen
Volkswagen Crafter 2017 Volkswagen Crafter 2017
FOOD_GBMEDICAL_GBSPECIALIST_GBMADE IN FRANCE

The various Iso-Kit fitting-out configurations

REFERENCE NAME
EKI0191 ISO-KIT insulation New CRAFTER 2017 L3H3 traction with right side door (MWB high)
EKI0192 ISO-KIT insulation New CRAFTER 2017 L3H3 traction without side door (MWB high)
EKI0193 ISO-KIT insulation New CRAFTER 2017 L4H3 traction with right side door (LWB high)
EKI0194 ISO-KIT insulation New CRAFTER 2017 L4H3 traction without side door (LWB high)
EKI0222 ISO-KIT insulation New CRAFTER 2017 L3H3 propulsion with right side door (MWB high)
EKI0223 ISO-KIT insulation New CRAFTER 2017 L3H3 propulsion without side door (MWB high)
EKI0224 ISO-KIT insulation New CRAFTER 2017 L4H3 propulsion with right side door (LWB high)
EKI0225 ISO-KIT insulation New CRAFTER 2017 L4H3 propulsion without side door (LWB high)



Keep the van’s original sheet metal partition: safe, soundproof, livable.
Vehicle with reinforced front axle option (VV8)

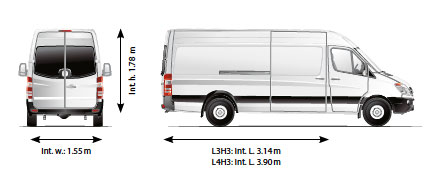

Dimensions

volkswagen_crafter_2017_dimensions_GB
  L3H3 L4H3
Interior length 3,14 m 3,90 m
Interior width 1,55 m 1,55 m
Between wheel arches 1,21 m 1,21 m
Interior height
(Traction / Propulsion and 4MOTION)
1,78 m /
1,68 m
1,78 m/
​1,68 m
Volume 8,35 m3 10,70 m3

Characteristics

IR: Enhanced Insulation with or without side doorCermafroid

  • Cemafroid Certification No. D62/004
  • Antibacterial food-grade gelcoat
  • Water drain with stainless-steel grating
  • Ceiling light (watertight as an option)
  • Aluminium door sills

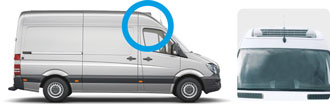

Mounting and fairing for refrigeration unit

Volkswagen Crafter 2017

REFERENCE NAME
EKI0195 Mounting New CRAFTER 2017

Options and accessories

Customisation and multiple accessories as an option
(shelves, plinths, aluminium floor, mounting and fairing…)
Please ask us.
