Man TGE Man TGE
FOOD_GBMEDICAL_GBSPECIALIST_GBMADE IN FRANCE

The various Iso-Kit fitting-out configurations

REFERENCE NAME
EKI0191 ISO-KIT insulation MAN TGE L3H3 traction with right side door (MWB high)
EKI0192 ISO-KIT insulation MAN TGE L3H3 traction without side door (MWB high)
EKI0193 ISO-KIT insulation MAN TGE L4H3 traction with right side door (LWB high)
EKI0194 ISO-KIT insulation MAN TGE L4H3 traction without side door (LWB high)
EKI0222 ISO-KIT insulation MAN TGE L3H3 propulsion with right side door (MWB high)
EKI0223 ISO-KIT insulation MAN TGE L3H3 propulsion without side door (MWB high)
EKI0224 ISO-KIT insulation MAN TGE L4H3 propulsion with right side door (LWB high)
EKI0225 ISO-KIT insulation MAN TGE L4H3 propulsion without side door (LWB high)

Keep the van’s original sheet metal partition: safe, soundproof, livable.
Vehicle with reinforced front axle option (637IA / N ° PRVV8)

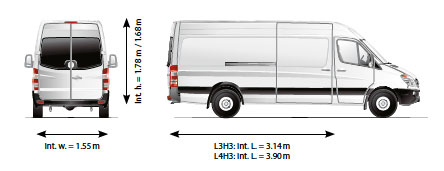

Dimensions

man_tge_dimensions_GB
  L3H3 L4H3
Interior length 3,14 m 3,90 m
Interior width 1,55 m 1,55 m
Between wheel arches 1,21 m 1,21 m
Interior height
(Traction / Propulsion)
1,78 m /
1,68 m
1,78 m /
1,68 m
Volume 8,35 m3 10,70 m3

Characteristics

IR: Enhanced Insulation with or without side doorCermafroid

  • Cemafroid Certification No. D62/004
  • Antibacterial food-grade gelcoat
  • Water drain with stainless-steel grating
  • Ceiling light (watertight as an option)
  • Aluminium door sills

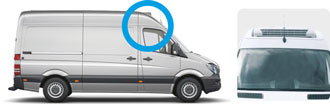

Mounting and fairing for refrigeration unit

Man TGE

REFERENCE NAME
EKI0195 ISO-KIT mounting MAN TGE

Options and accessories

Customisation and multiple accessories as an option
(shelves, plinths, aluminium floor, mounting and fairing…)
Please ask us.​
